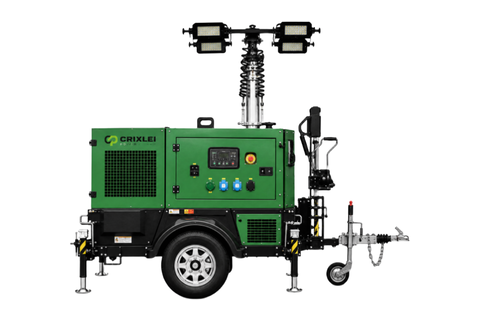

LUX600H Hybrid Lighting Tower
Kubota diesel + 16 kWh LFP battery hybrid — 9 m mast with 4 × 150 W LEDs delivering 120,000 lumens of silent, low-fuel site light.
Key Features
Kubota Z482-ET03 6.0 kW diesel + 16 kWh LFP battery hybrid
120,000 lm output — 4 × 150 W LED heads on 9 m hydraulic mast
15+ hours silent lighting on battery alone
360 h total runtime on 100 L fuel tank
12 h battery discharge / 3 h charge cycle
BMS-protected LFP battery — 6,000 cycles at 90 % DoD
Auto day/night light control with BMS + Smart Ctrl logic
355° manual light bar rotation, electrical light tilt
Iso-lux curve coverage profile from LED heads
Towable 1,800 kg trailer — overrun & parking brake
100 km/h wind rating, 14″ tyre rim, 80 km/h tow speed
Heavy-duty stabiliser legs · −10 °C to 50 °C operating temp
EU Stage IIIA emissions · MD6.0-48 alternator
Optional 4G cloud monitoring & GPS system
